DIAMOND OMNI DIGITAL TV ANTENNA

SKU-2914

ACCESSORIES INCLUDED

Adapter, power booster, car charger, F connector, waterproof cap, 3* screws for base, 2*plastic plugs for antennas

SPECIAL FEATURES

• Highlights
• 360° TV Omni reception
• No adjustment needed
• Suitable for indoor & outdoor use
• Portable for car, camping, marine
• Easy to install and use
• UV protected

PERFORMANCE

• Receives Full HD and digital TV signals, local VHF and UHF signals
• Built-in wide band amplifier for best performance
• 360°excellent reception extremely wide frequency range
• Connect directly to TV for standard reception

POWERING

• To be powered by digital receiver
• Or by included AC/DC adaptor
• Or 12V adaptor

TECHNICAL SPECIFICATIONS

• Frequency:
• VHF 174-230MHz UHF 470-694MHz
• Impedance (Ω): 75
• Polarization: Horizontal
• Working Voltage: DC 12V/200mA
• Suggest reception range: 0-50 KM from TV transmitters

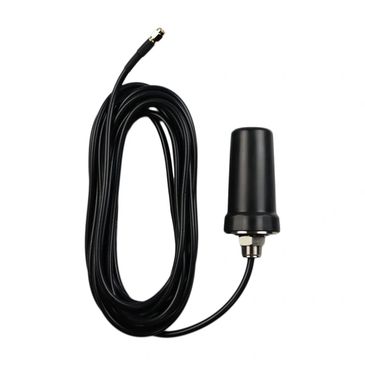

 EXTERNAL BOOSTER ANTENNA

SKU-2915

The External Booster Antenna is a compact low-profile omnidirectional LTE antenna that provides excellent coverage for mobile and fixed data applications from 698 MHz to 3.8GHz. The antenna features an attractive, compact housing which can be used in both indoor and outdoor applications. This antenna is fitted with a 15.7mmᶲ stud mount (fits a 16mmᶲ hole) incorporating an integrated rubber O-ring seal and is IP65 rated.

Features:

• Polycarbonate radome is ideal for outdoor use

Attractive, low profile design for maximum overhead clearance

• Stud mounting offers ease of installation in the field
• Ingress protection to IP65
• Other cable/connector configurations available upon request
